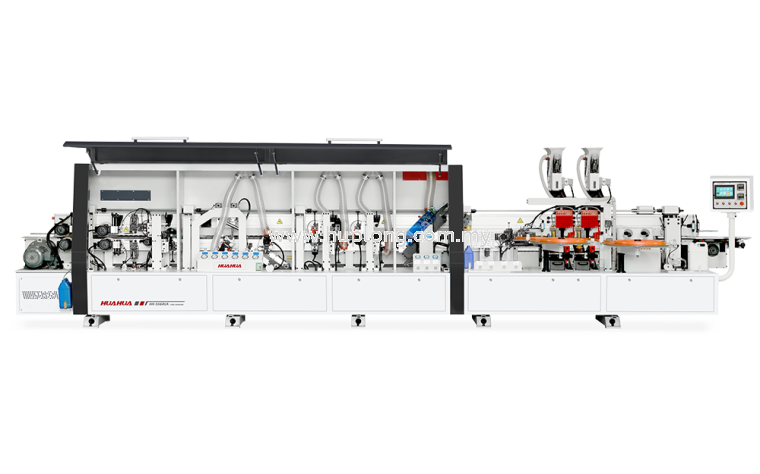

Edge Banding Machine (HH-556RLK)
| Previous | 8 / 10 | Next |
HH-556RLK Edge Banding Machine ¨C Pre-milling + PUR Glue Full Process Edgebanding Demo
- edge banding machine
- automatic edge bander
- woodworking edge banding machine
- panel furniture edge bander
- PVC edge banding machine
Functions
Features
.png)

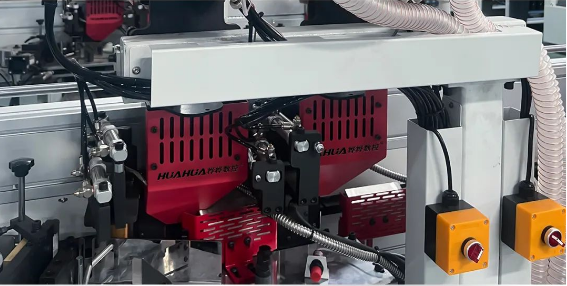

Double PUR Glue Pot
The advantage of the double glue pot is that according to different colors of panels and different colors of edge banding, you can choose different colors of glue to solve the problem of glue lines
.png)

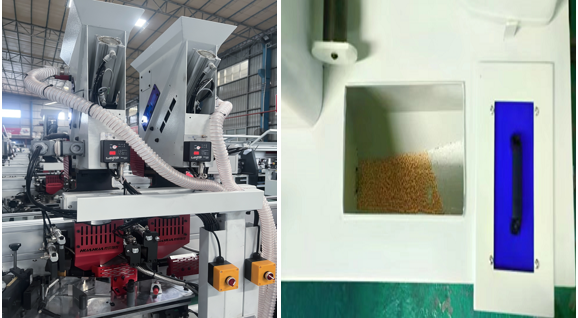

Quick Sol Device with automatic glue suction device
It only takes 15 minutes to start working at the fastest, and there is no need to wait for the glue to melt during mass production. Avoid the trouble of manual gluing, work uninterruptedly, and avoid dry burning of the glue pot. automatic glue suction device , no need work add the glue all the time with big Glue storage tank
.png)

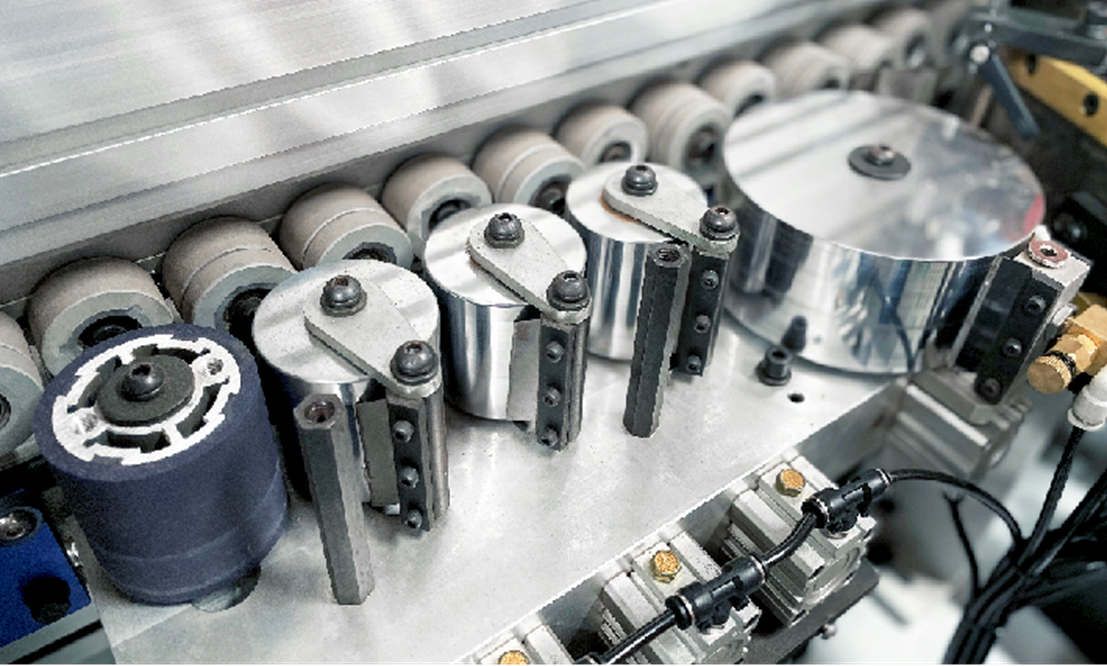

Pressing wheel: 4 pcs strong pressing wheels and 1 pcs rubber wheel
4 pcs powerful pressure wheels with 1 pcs rubber wheel, the diameter of the increased pressure wheel is 150mm
The built-in scraper sprays the remaining glue, and the rubber wheel has better coverage and a tighter fit.
.png)

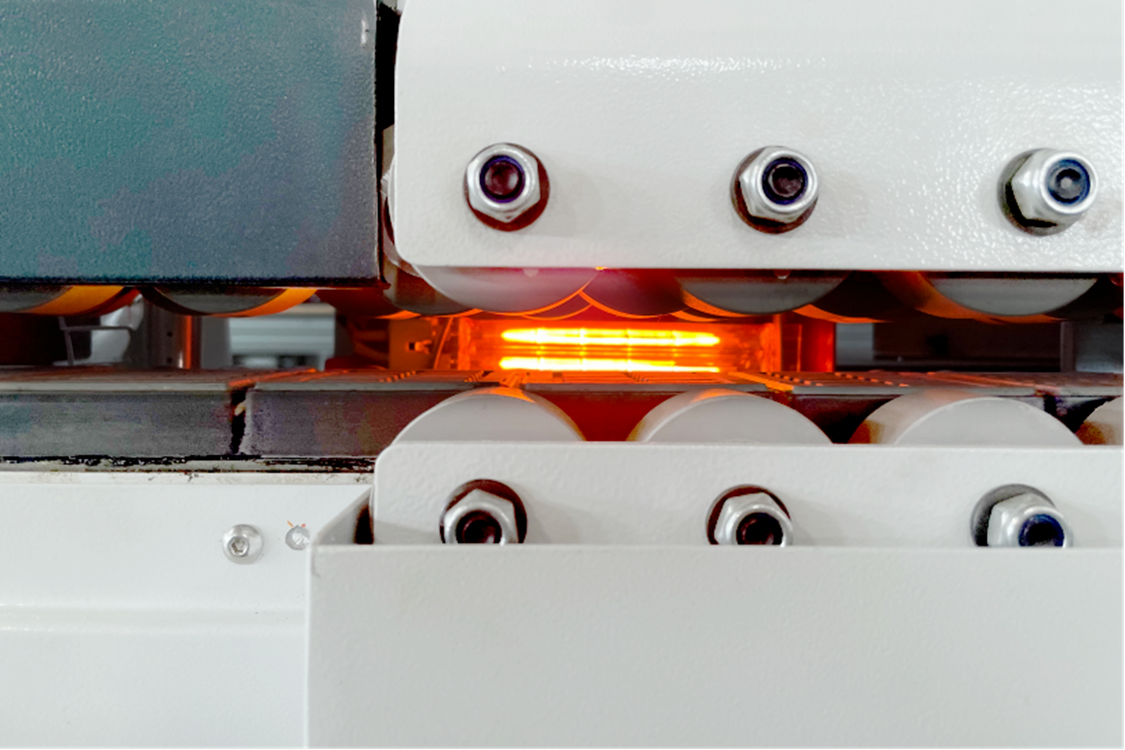

Bake Light
Bake Light -preheating, avoid degumming
After the baking lamp preheats the edge of the board, the glue is applied to seal the edge more tightly, and the edge band is pasted more firmly, which can avoid the problem of degumming caused by large temperature differences
.png)

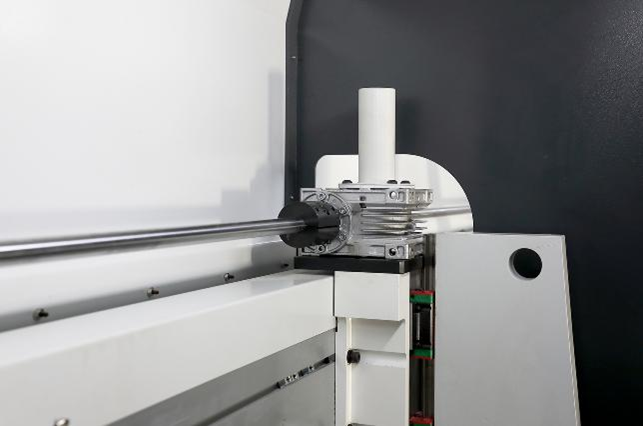

Independent lifting of the pressure beam
The pressing unit, aligning unit and tracking unit all use independent lifting to prevent the panel from shaking and shifting, making it tighter and more stable, with precise edge banding.
.png)

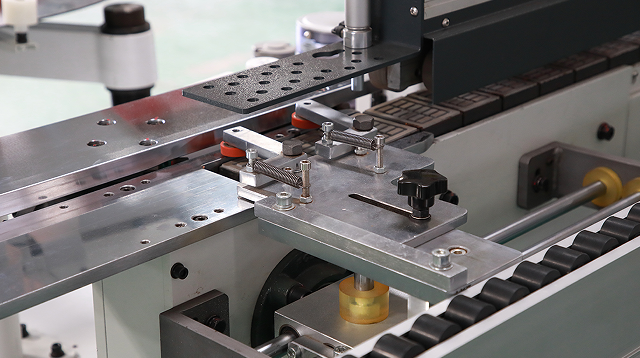

Optional - Small board feeding aid
Auxiliary small boards enter the edge banding machine for processing to ensure the straightness of the small boards, prevent springboards, and ensure the edge banding effect.
.png)

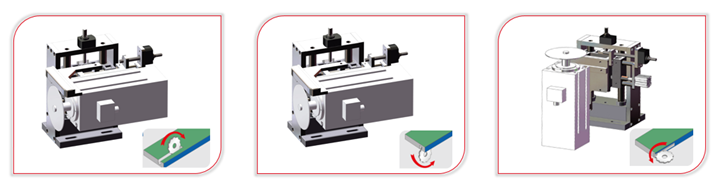

Optional - Custom Grooving Devices
We can customize according to customer needs: upper slot T, lower slot H, side slot S
Technical Specifications
Applications
Automatic edge banding machine, meet various edge banding needs, the necessary machine for furniture, saving time, labor cost.
.png)
Features
Double PUR Glue Pot
The advantage of the double glue pot is that according to different colors of panels and different colors of edge banding, you can choose different colors of glue to solve the problem of glue lines
Quick Sol Device with automatic glue suction device
It only takes 15 minutes to start working at the fastest, and there is no need to wait for the glue to melt during mass production. Avoid the trouble of manual gluing, work uninterruptedly, and avoid dry burning of the glue pot. automatic glue suction device , no need work add the glue all the time with big Glue storage tank
Pressing wheel: 4 pcs strong pressing wheels and 1 pcs rubber wheel
4 pcs powerful pressure wheels with 1 pcs rubber wheel, the diameter of the increased pressure wheel is 150mm
The built-in scraper sprays the remaining glue, and the rubber wheel has better coverage and a tighter fit.
Bake Light
Bake Light -preheating, avoid degumming
After the baking lamp preheats the edge of the board, the glue is applied to seal the edge more tightly, and the edge band is pasted more firmly, which can avoid the problem of degumming caused by large temperature differences
Independent lifting of the pressure beam
The pressing unit, aligning unit and tracking unit all use independent lifting to prevent the panel from shaking and shifting, making it tighter and more stable, with precise edge banding.
Optional - Small board feeding aid
Auxiliary small boards enter the edge banding machine for processing to ensure the straightness of the small boards, prevent springboards, and ensure the edge banding effect.
Optional - Custom Grooving Devices
We can customize according to customer needs: upper slot T, lower slot H, side slot S
Technical Specifications
| Panel length size | ≥120mm |
| Panel width | ≥95mm |
| Panel thickness | 10-60mm |
| Tape width | 13-63mm |
| Tape thickness | 0.4-3.0mm |
| Feeding speed | 15-18-20m/min |
| Total power | 27kw |
| Working pressure | 0.65mpa |
| Size | 7575*900*1900mm |
| Weight | 2600kg |
Applications
Automatic edge banding machine, meet various edge banding needs, the necessary machine for furniture, saving time, labor cost.
- Edge banding for panel furniture components
- Cabinet and wardrobe manufacturing
- PVC, ABS, and melamine edge banding
- Finishing of wood-based panels and boards
Service Coverage
We focus on supplying woodworking machinery to local customers.
Installation, machine setup, operator training, and after-sales technical support are provided by our local service team.
Remote technical assistance is available when required.
FAQ
Q: What is this machine used for?
A: It is used for applying edge banding on wood-based panels in furniture manufacturing.
Q: Is this machine suitable for furniture factories?
A: Yes. It is suitable for cabinet, wardrobe, and panel furniture production.
Q: Do you provide installation and training?
A: Yes. Installation, machine setup, and operator training are provided by our local technical team.
Q: Do you offer after-sales technical support?
A: Yes. Ongoing after-sales service and technical support are provided.
